Product Introduction
Featuring an innovative self-monitoring function, the instrument's built-in sensor chip continuously monitors the operational status of the compensator's limit rod. If the instrument is not level or the compensator is damaged, an alarm is triggered, indicating that the instrument requires calibration or repair, thereby preventing project losses caused by measurement inaccuracies.
Featuring an innovative self-leveling function, simply press the self-leveling button and the legs will rotate until the circular bubble is centered. This simplifies what was once a complex leveling process, making site leveling and surveying both fast and accurate.
With the laser pointer activated, the laser dot aligns with the center of the crosshairs, allowing you to quickly read the scale on the tower ruler using the position of the laser dot.
With a 46x magnification, the single-observation range is significantly extended, reducing the number of station changes required for long-distance leveling surveys and large-scale site leveling. At the same distance, the scale markings are magnified for greater clarity, and the readability of millimeter-level measurements is greatly improved.
Product Parameter (specification)
| Parameter | Value |
| Model | DAL46TAJ |
| Probable error per kilometer double run | 1 mm |
| Leveling type | Fully automatic compensation |
| Compensating range (automatic leveling) | ±15″ |
| Automatic leveling range | ±7° |
| Magnification | 46× |
| Objective aperture | 40 mm |
| Compensator type | Magnetic damping |
| Leveling accuracy | ±0.3″ |
| Field of view | 1°20′ |
| Minimum focusing distance | 0.6 m |
| Multiplying constant / Additive constant | 100 / 0 |
| Ingress protection (do not expose to rain) | IP54 |
| Circular vial sensitivity | 8′ / 2 mm |
| Laser power | ≤ 1 mW, IEC Class 2 |
| Effective laser range | 200 m |
| Spot size | 5 mm / 100 m |
| Deviation between laser beam and collimation axis | ≤ 5″ |
| Laser power supply | 2 AA batteries |
| 8 hours of continuous operation | |
| Leveling motor power supply | 800 mAh Li ion battery, 1 hour continuous operation |
| Self calibration error | / |
| Constant error | / |
| Tilt alarm mode | Flashing light + buzzer |
| Alarm range | X-axis: ±15′, Y-axis: ±30′ |
| Tilt alarm power supply | 2 × AAA battery |
Product Feature And Application

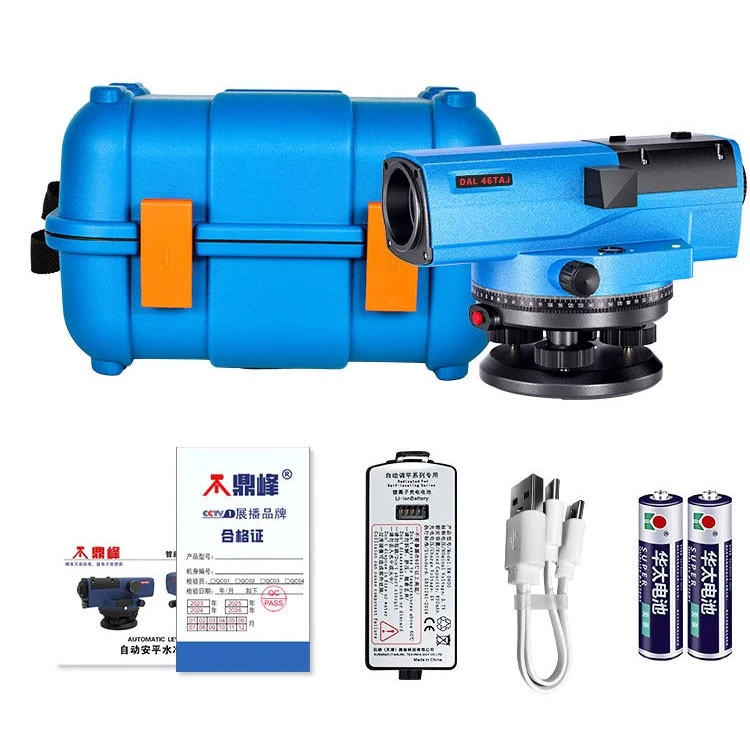

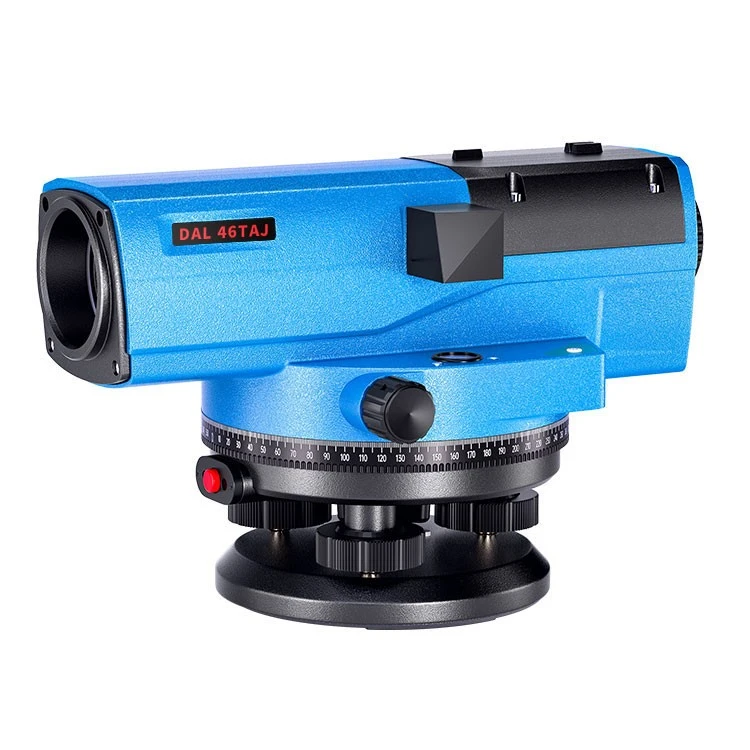

Self-Aligning Laser Level DAL46TAJ
Features a laser pointer for quick readings using the laser dot, making it particularly suitable for long-distance leveling or nighttime work
- After five years of research and development and tens of thousands of experiments, we have successfully developed a fully automatic intelligent laser leveling instrument. This instrument is easy to operate, features intelligent detection and laser alignment functions, and can automatically complete the leveling process.
One-click automatic instrument status check
- If the instrument is not level or the compensator is damaged, an alarm will sound and the bubble indicator will turn red. At this point, you should immediately stop work to check whether the instrument is level or if the compensator is malfunctioning, in order to prevent irreparable project losses caused by instrument inaccuracy.
Intelligent Automatic Leveling Function
- Features a built-in smart leveling motor for one-touch automatic leveling-even beginners can use it with ease, so you'll never have to worry about the leveling bubble again.
46x high-magnification level, capable of viewing lunar craters
- Significantly increased single-shot measurement range, enabling long-distance leveling surveys and large-scale site leveling with fewer station changes;
- For the same measurement distance, 46x magnification provides a clearer view of the scale, greatly improving the readability of millimeter-level measurements and reducing estimation errors.
Magnetic damping compensator
- Anping Precision: 0.3″,
